Star Delta Metal Control Panel

Why Choose Kairun's Star Delta Metal Control Panel?

Kairun's Star Delta Metal Control Panel is a professional star-delta starter designed specifically for medium to large-sized squirrel-cage asynchronous motors. Utilizing mature star-delta switching technology, the starting current is strictly controlled to 1/3 of the direct starting current, minimizing impact on the power grid and reducing mechanical wear on the motor and connected equipment.

Our control cabinet uses high-quality components from internationally renowned brands, including contactors and thermal relays, combined with optimized control circuitry. In addition to overload and phase loss protection, it provides short-circuit, motor over-temperature, and leakage protection, as well as an intelligent fault diagnosis module. These features enable real-time monitoring, immediate alarms, and precise fault location, minimizing downtime and production losses.

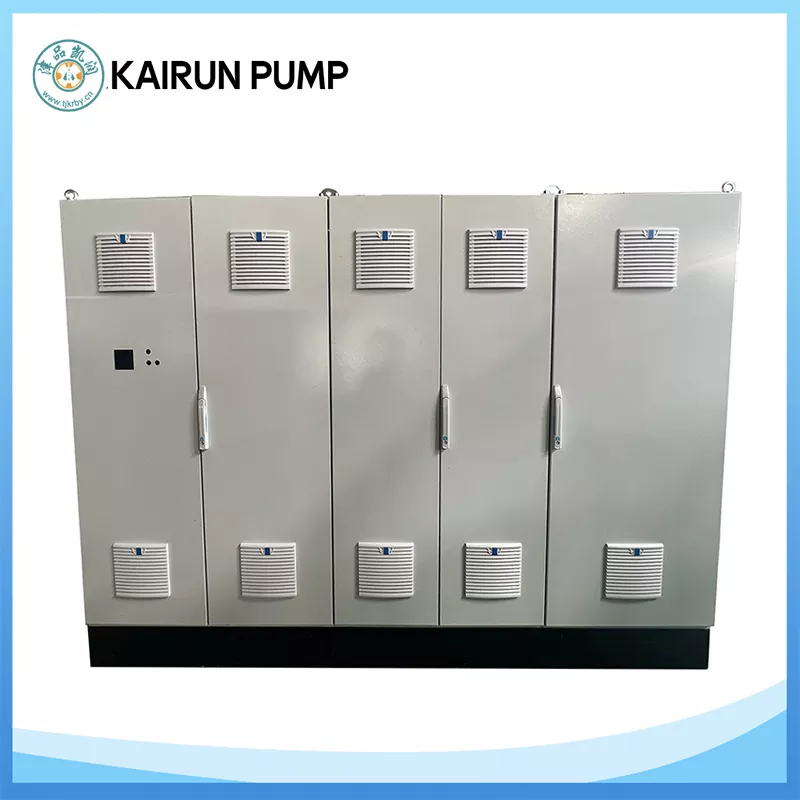

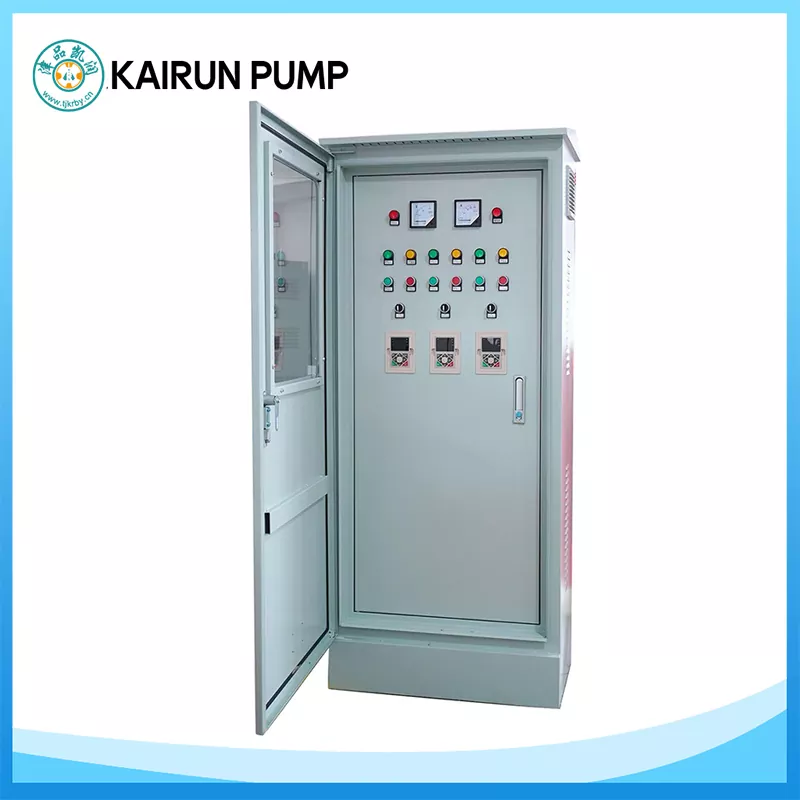

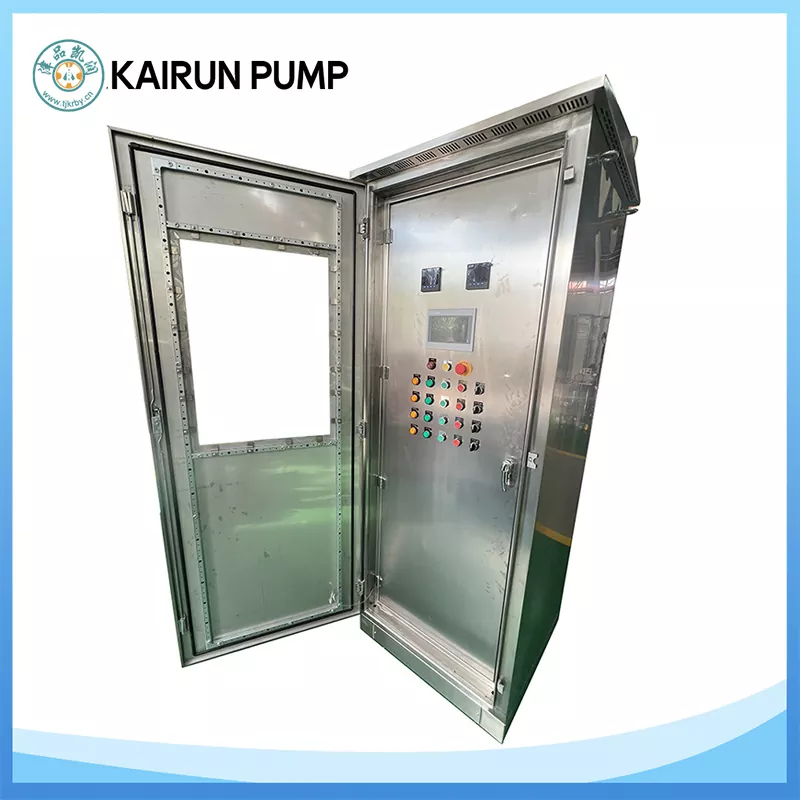

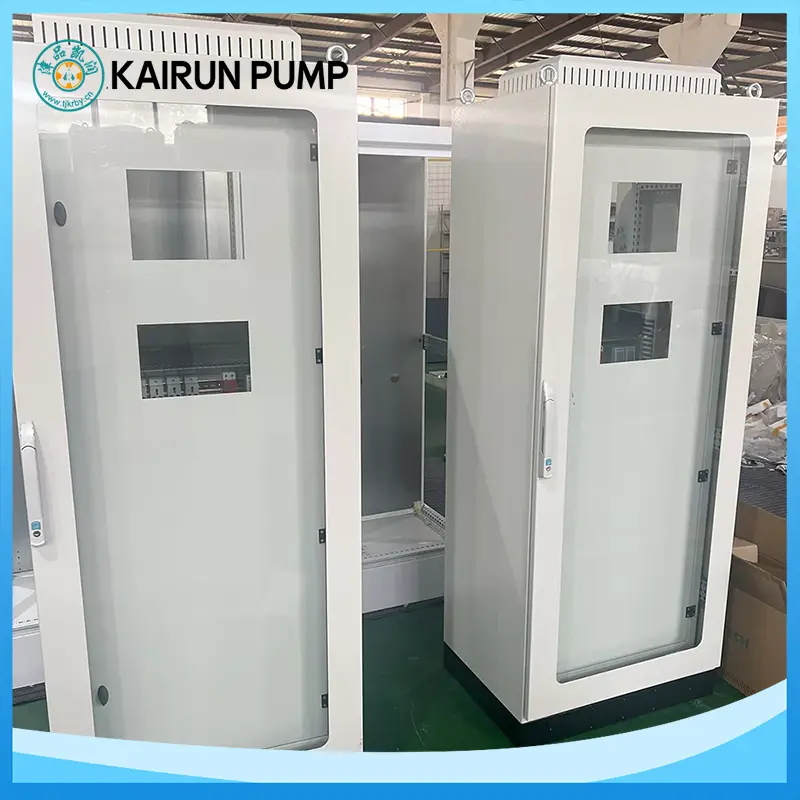

The cabinet body is constructed of high-quality carbon steel or stainless steel, treated with high-voltage electrostatic spraying, achieving an IP54 protection rating. It is dustproof and moisture-proof, suitable for indoor and outdoor installation. The internal components are neatly arranged, and the wiring is robust, ensuring long-term stable operation. The control cabinets have a power range of 15-90kW, flexibly supporting equipment such as pumps, fans, compressors, and conveyors, making them ideal for HVAC, industrial production, agricultural irrigation, and fire protection systems.

Each Advanced Star Delta Metal Control Panel undergoes rigorous factory testing in our Chinese factory to ensure consistent quality and stable, reliable performance.

Parameter

What are the main advantages of this control cabinet?

1. Precise delta start: Limits inrush current, protecting motors and the power grid.

2. Comprehensive safety protection: Multi-layer protection against overload, short circuit, leakage, and overheating.

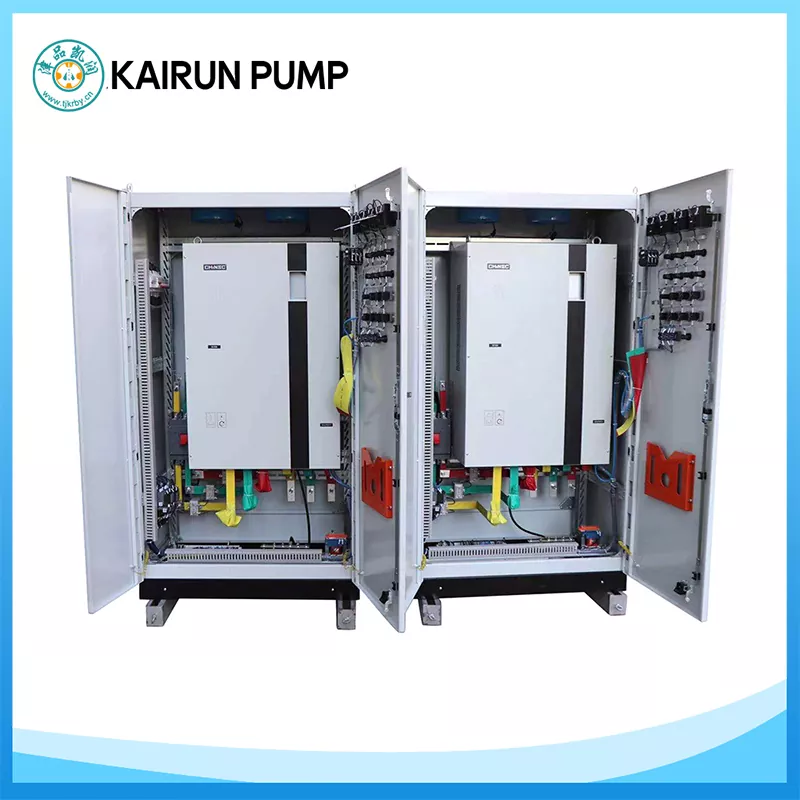

3. Durable and reliable: Utilizes high-quality materials and optimized internal layout, ensuring a long service life even in harsh industrial environments.

4. Energy efficient and cost-effective: Reduces mechanical wear and power loss, ensuring economical operation.

What are the applications of the new star-delta control cabinet?

Our Quality Star Delta Metal Control Panel is ideal for starting star-delta motors in various scenarios, providing low-voltage, safe, and stable motor operation.

Core Applications:

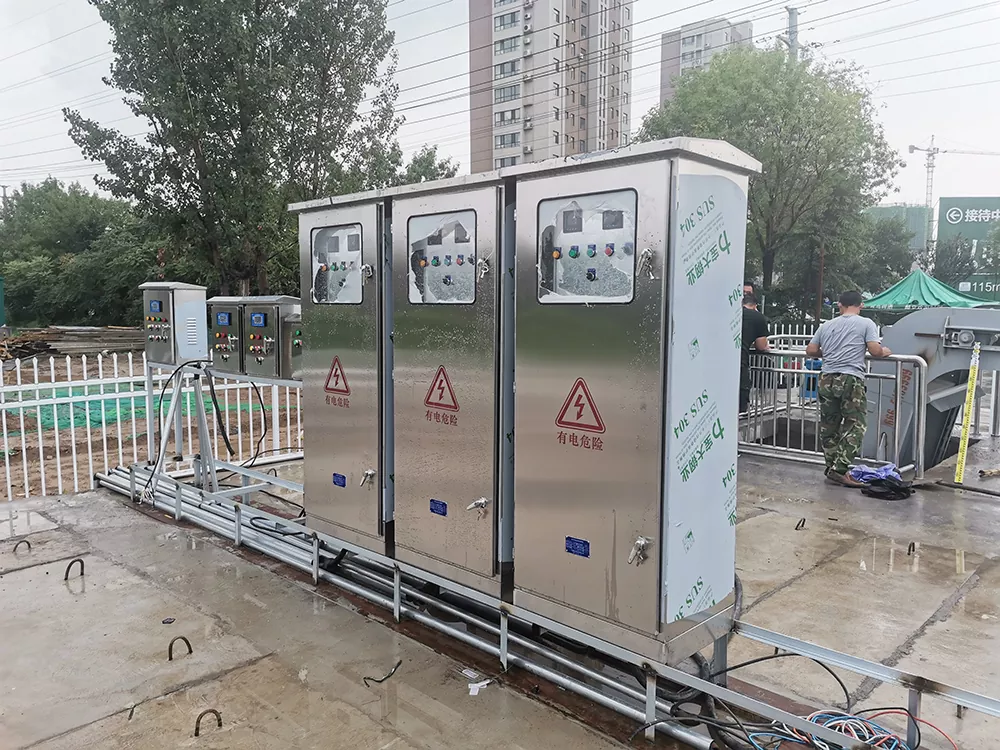

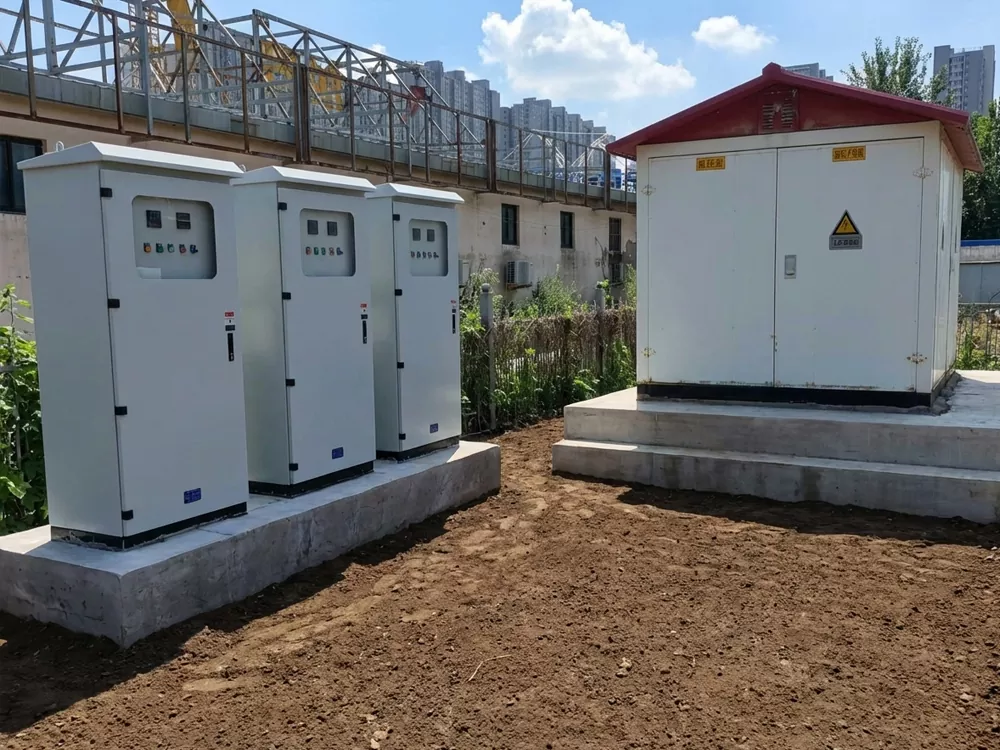

Municipal Water Supply and Drainage Systems: Suitable for booster pump stations, sewage treatment plant circulating pumps, and large drainage systems. The star-delta switch minimizes inrush current, protecting pipes and motors while ensuring continuous water supply and drainage.

Industrial Production: Suitable for industries such as chemical plants, power plants, and metallurgical plants, used to control large fans, compressors, and conveyors. It reduces voltage fluctuations, prevents equipment downtime, and maintains high production efficiency.

Control Cabinet Usage and Maintenance Guidelines

Installation and Commissioning: Confirm the model and motor compatibility of the New Triangle Control Cabinet. Keep the mounting surface clean and dry, avoiding strong magnetic fields, high temperatures, and flammable areas. Secure the control cabinet and wiring. Perform professional no-load and load tests before formal operation.

Daily Inspections: Monitor switches for abnormal noise or odors, check current and voltage stability, and respond to alarms promptly. Ensure good ventilation and keep the cabinet clean to prevent damage from dust or moisture.

Maintenance: Regularly inspect contactors, relays, and wiring; replace worn or oxidized parts. After long-term shutdown, disconnect the power supply, clean and seal the control cabinet. Perform a no-load test before restarting.

FAQ

Q1: Why choose Kairun as your supplier?

A: Kairun is a trustworthy Chinese manufacturer and supplier, providing high-quality New Triangle Control Cabinet, rigorous factory testing, and reliable after-sales support.

Q2: What types of motors are compatible?

A: Suitable for medium to large squirrel-cage asynchronous motors with a power range of 15-90kW.

Q3: Can it be used outdoors?

A: Yes, the IP54 protection rating of the control cabinet is suitable for indoor and outdoor installation, including dusty or humid environments.

Q4: What equipment can the Durable Star Delta Metal Control Panel?

A: Pumps, fans, compressors, conveyors, and similar motor drive systems.
